Compared with the ISO shipping container,Container Family high-quality swap body container can efficiently transfer cargo between different transportation methods,reducing the waiting time during the loading and unloading process.

Why We Need Exchangeable Swap Body?

In traditional road transportation, drivers often have to wait for several hours to complete the loading and unloading of goods, which leads to the emergence of problems such as increased costs, decreased loading and transporting efficiency, and reduced fleet utilization rate.

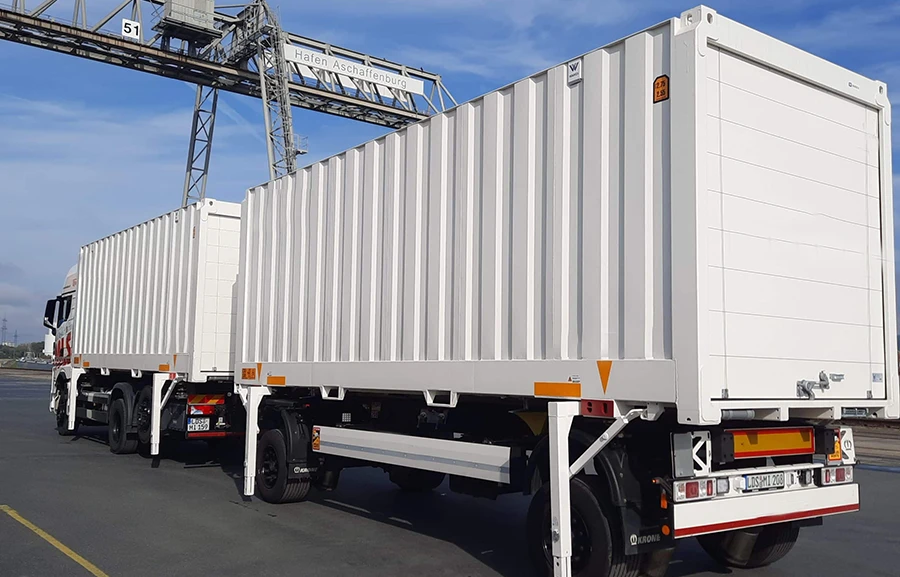

The existence of exchangeable swap body solves these problems perfectly——The freight unit is completely separated from the vehicles.Drive the truck to the designated position, lower the air suspension, lower the four legs and lock the safety pins to ensure that all four legs are evenly on the ground.Then,slowly drive the truck forward.At this point,the container is standing independently on the ground and is ready for loading and unloading at any time,while the truck can then proceed to the next destination.

Key Points of This Special Container

·Light yet Durable Construction.Normally, the swap body container cannot be stacked,so it can be made of lighter materials such as steel or aluminum.At the same time,it is also sufficiently sturdy and can be used for a long time with minimal wear and tear.

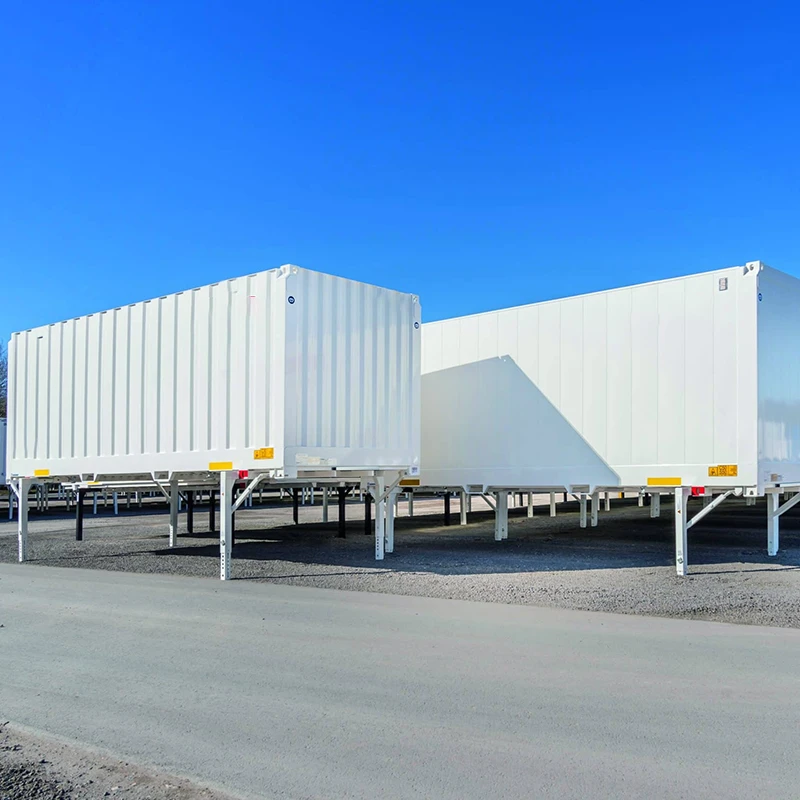

·Integrated Support Legs.This is the most important feature! It can ensure that the container can stand on the floor without locking the vehicle.

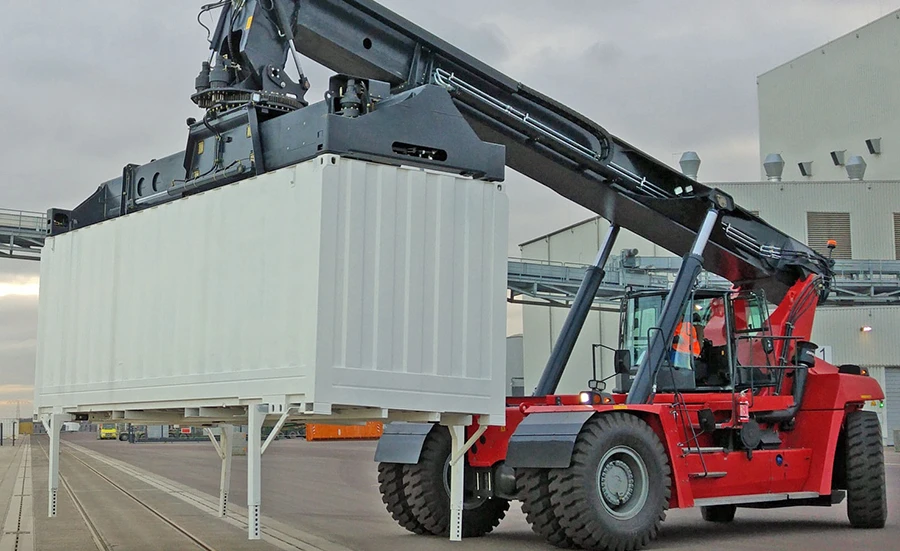

·Grappler.This container does not have lifting points on its top,so the lifting has to start from the bottom.

·Width.It is wider than the traditional ISO shipping containers. The standard width is 2550mm, and it can accommodate two European pallets side by side.

·High Efficiency.Better vehicle utilisation, lower labour costs;Idle containers can be used as mobile storage containers.

The Disadvantages or Limitations of This Exchangeable Containers

·Need Special Chassis.The ordinary tractor is not suitable. It requires a chassis with lifting function / air suspension.

·Non-stackability.The swap body containers can’t be stacked,therefore,its overall storage capacity will be relatively low.

·Universality.This kind of shipping container is accepted by EU market,it is not common in other countries.

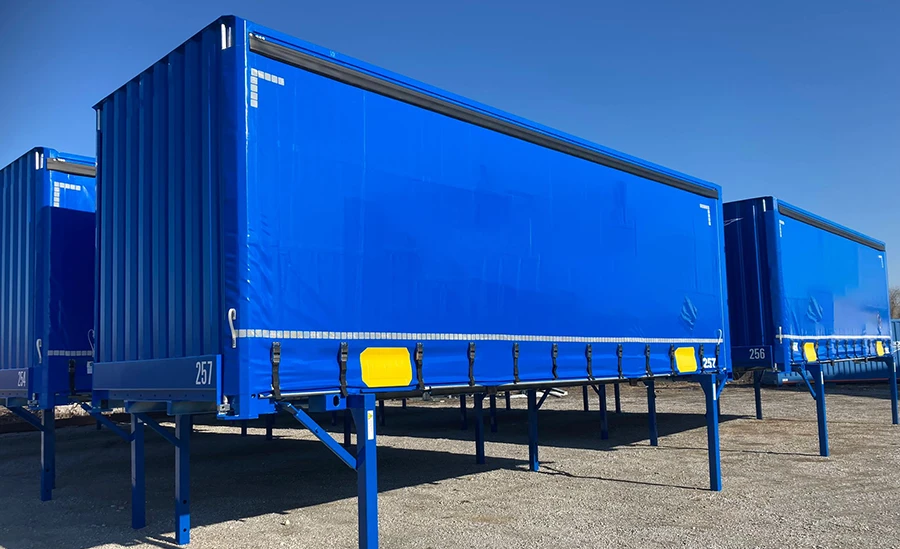

This swap body container is ideal to improve efficiency and flexible in European logistics.It enables the quick connection between road and rail transport.For most carrier or logistics firms,swap body is not an option but a strategic necessity.It also can be designed into side curtain style to increase loading efficiency further.

Container Family would like to provide the specific intermodal exchangeable body container for you with CSC&CCS certification.Contact us to get a full quotation and case pictures now!

FAQ

Q1.Why are they called as “swap bodies”?

A:Because they can be “swapped” very quickly between different vehicles or between a vehicle and a terminal without the need for a crane.

Q2.How can I get the project?

A:If you don’t have a drawing,our designer will provide,if you have one,just send it to us.

Q3.Do you provide customization service?

A:Yes.You can change the external color,company logo,size,etc.
